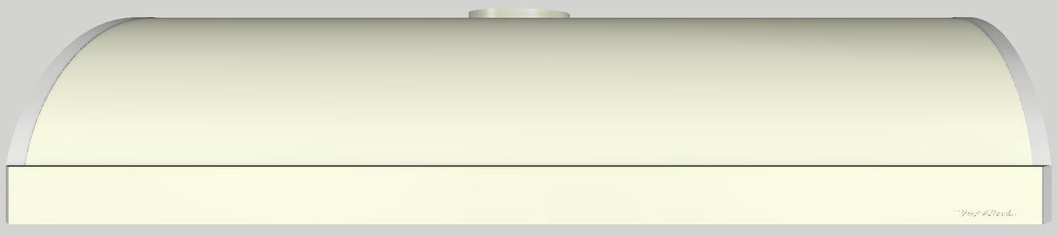

    Vent-A-Hood® 36" Biscuit Under Cabinet Range Hood


    Model #:

    XRH9-136 BT

    At a Glance

    Product Dimensions 9"h x 36"w x 21"d

    Linear styling perfectly accents the Professional-styled kitchen.Read More

    $1,238.00

    View Delivery & Pickup OptionsAdd ZIP Code

    What We Offer

    Get to know this product.

    Product Overview

    Product Overview

    Includes the Magic Lung® blower system. Lights feature a dual switch for dimming. Equipped with the SensaSource® heat sensor. Available in popular standard or custom paint colors, stainless steel, real brass, real copper or hammered copper. Recommended mounting height is 24" - 27" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit. Also available in custom sizes.

    *Special Notes: LED lights. WL-1 warming lights are available on selected models.

    Useful Documents
    Specifications

    General Specs

    Width (in.)36
    Height (in.)9
    Duct Size (in.)6
    Depth (in.)21
    ColorBisque
    Color/Finish NameBisque
    PositioningStationary
    Range Hood TypeUnder Cabinet
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)36
    Maximum CFM300
    Sones Rating5.4
    Vent LocationTop
    Voltage115
    Noise Level (Sones)Standard - (High)
    Ventilation TypeDucted

    Dimensions

    Max Height Above Cooktop:27
    Min Height Above Cooktop:24

    Display

    Controls:Digital

    Other

    Number of Lights:2
    Sones (Noise Level) Rating:5.4
